Hand-held Combined Metal and Gamma-radiation Monitor GSDT-007
*Volume Pricing Available
The new model GSDT-007 is easy to use hand-held metal detector with additional function to detect and locate gamma-radioactive substances in the checked baggage, objects and personnel. During just single scan the GSDT-007 allows simultaneous detection of metals and radioactive substances thus substantially reducing clearance time and quantity of the instruments used by personnel at the check-point.
The unique operational advantage of the GSDT-007 model that makes it different from any existing analogues is sensitivity of gamma detector. The GSDT-007 uses CsI(Tl) scintillation detector, similar to specialized PRDs (personal radiation detectors) used in homeland security. This substantially extends the range of applications of the instrument, making it in particular useful in cases where the use of regular PRDs is intolerable. Given the common housing and shape of the instrument it makes it easy e.g. hidden additional scan for radioactive substances, while doing regular security check with metal scanner, etc. Another application area is the management of the medical waste, where the need for simultaneous control of syringe needles and radioactive contaminated substances is needed.
The GSDT-007 can be used both indoors and outdoors for inspection of people, vehicles, luggage, premises and open area. It requires little training, is easy and convenient to use.
ADVANTAGES
- Ultimate sensitivity (similar to specialized PRDs)
- Proprietary algorithm providing lowfalse alarms rate
- S e l f – c a l i b r a t i n g t o d i ff e r e n t backgrounds
- Wide temperature range
- Sound and vibration alarms
- Rugged and lightweight
- Requires no or little training
TYPICAL APPLICATIONS - Custom and border protection check points
- Medical waste management
- Airports and seaports, points of entry
- Public and sport events
- Building security and critical infrastructure protection
Specifications
| Radiological | ||
| Detector | 3cc CsI(Tl) +SiPM | |
| Sensitivity | 100 cps/μSv/h (Cs-137) | |
| Energy range | from 50 keV to 3 MeV | |
| Preset threshold | 30 μR/h (0.30 μSv/h) | |
| Typical time to alarm, gamma | < 2 sec. | |
| Metal | ||
| Typical detection distance (in the air), mm | ||
| Knife | 150 (±10) | |
| Gun | 200 (±10) | |
| Magnetic plate 100×100 mm | 200 (±10) | |
| Led container | 200 (±10) | |
| Metal detector, frequency | 40 kHz | |
| Scanning speed, m/s | from 0.1 to 0.5 | |
| Mechanical | ||
| Ingress protection | IP54 | |
| Dimensions, mm | 420x85x45 | |
| Weight, g | 470 (with battery) | |
| Environmental | ||
| Temperature range | from -20 to +50 °С | |
| Pressure | from 84,0 to 106,7 kPa | |
| Humidity | from 95% at +35 °С | |
| Functional | ||

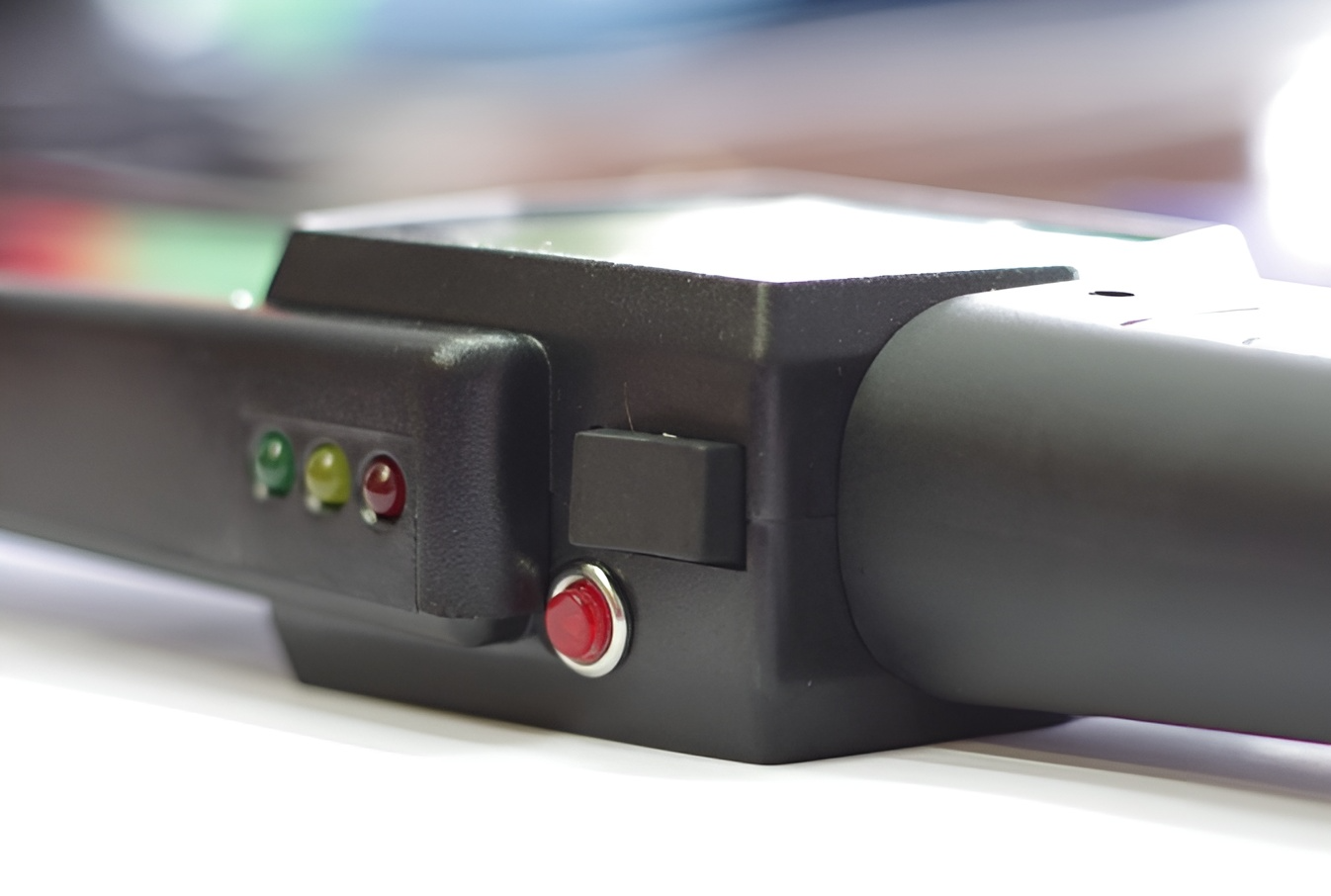

| Three-color LED indication | Green LED = ONBlue LED = GAMMA ALARM Red LED = METAL ALARM | |
| Battery | one 9V (type 6F22) | |
| Battery lifetime | 80 hours (at normal operation conditions) | |
| Dimensions, mm | 420x85x45 | |
| Weight, g | 470 (with battery) | |
Specifications are subject to change without notice.
